Miniature ball screws

Miniature ball screws

Miniature ball screws are ideal for compact applications where space is limited. Typical examples include medical devices and precision measuring equipment.

Description

We offer both ground and rolled miniature ball screws in a variety of diameters and leads.

Miniature Ball Screws

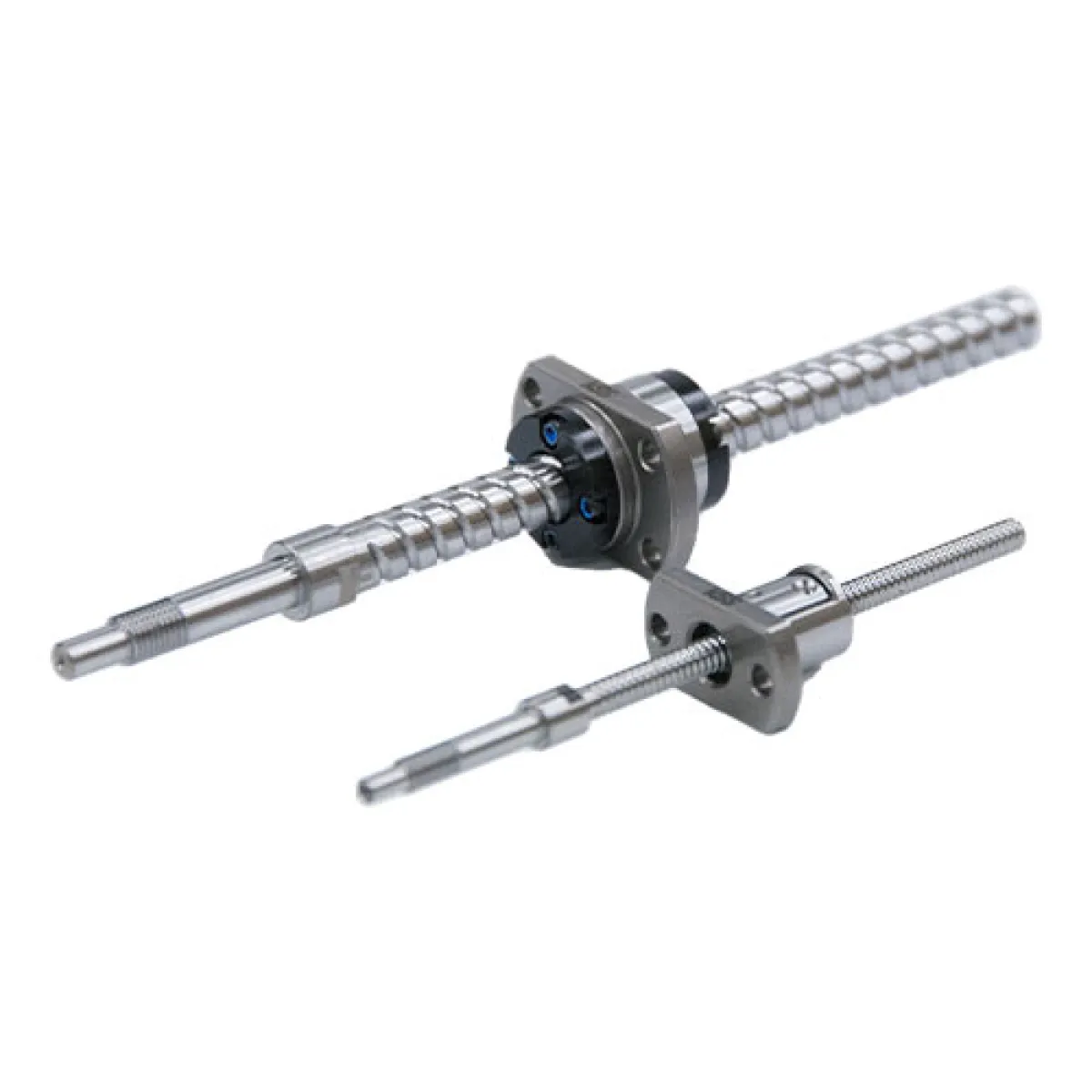

Ground Ball Screw: SG Series

Ground Ball Screw: SG Series

Diameter size: 3–15 mm
Lead: 0.5–20 mm
Tolerance class: C3 and C5
Length: up to 600 mm

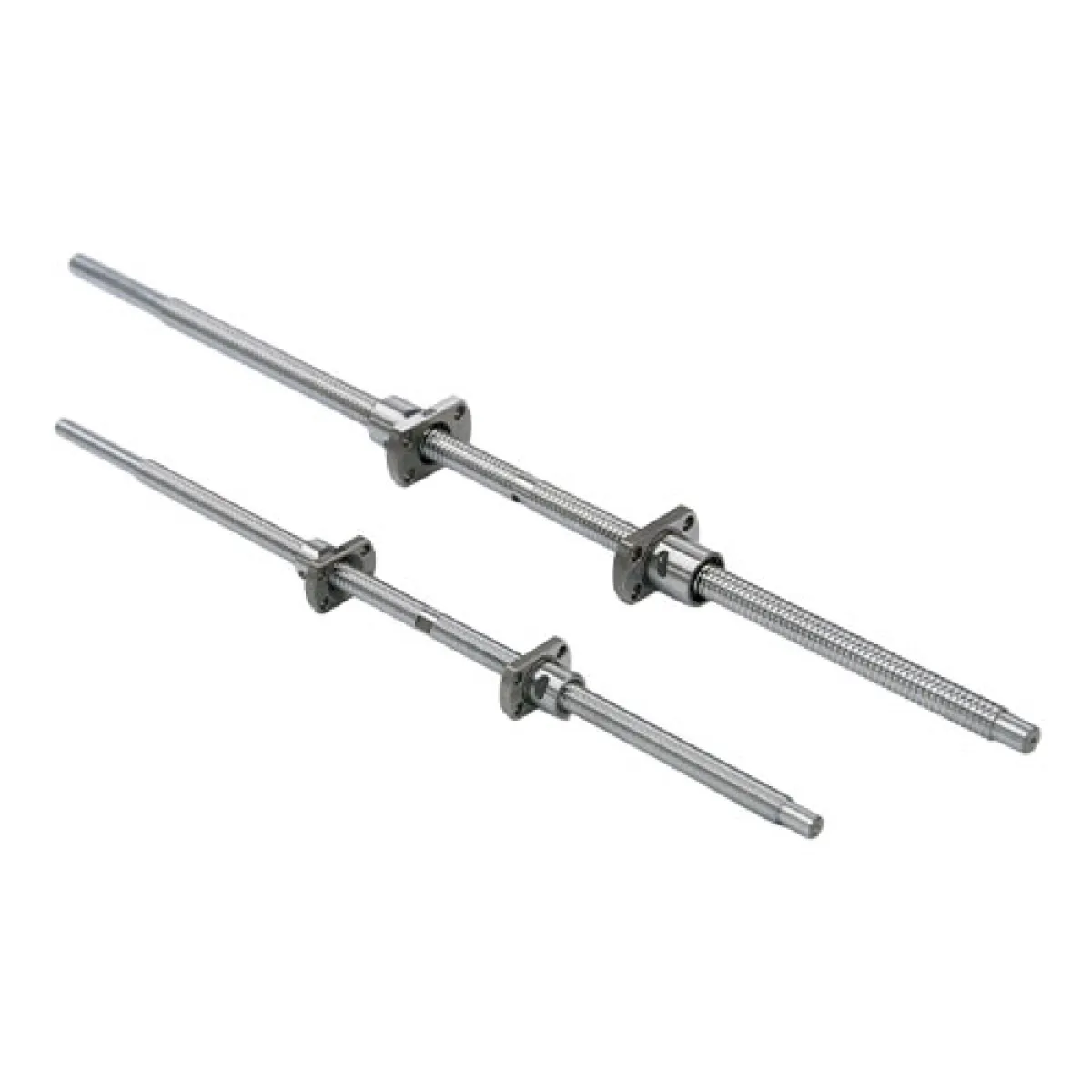

Ground Ball Screw, Bidirectional: SD Series

Ground Ball Screw, Bidirectional: SD Series

Diameter size: 4–12 mm
Lead: 1–2 mm
Tolerance class: C3 and C5
Length: up to 440 mm

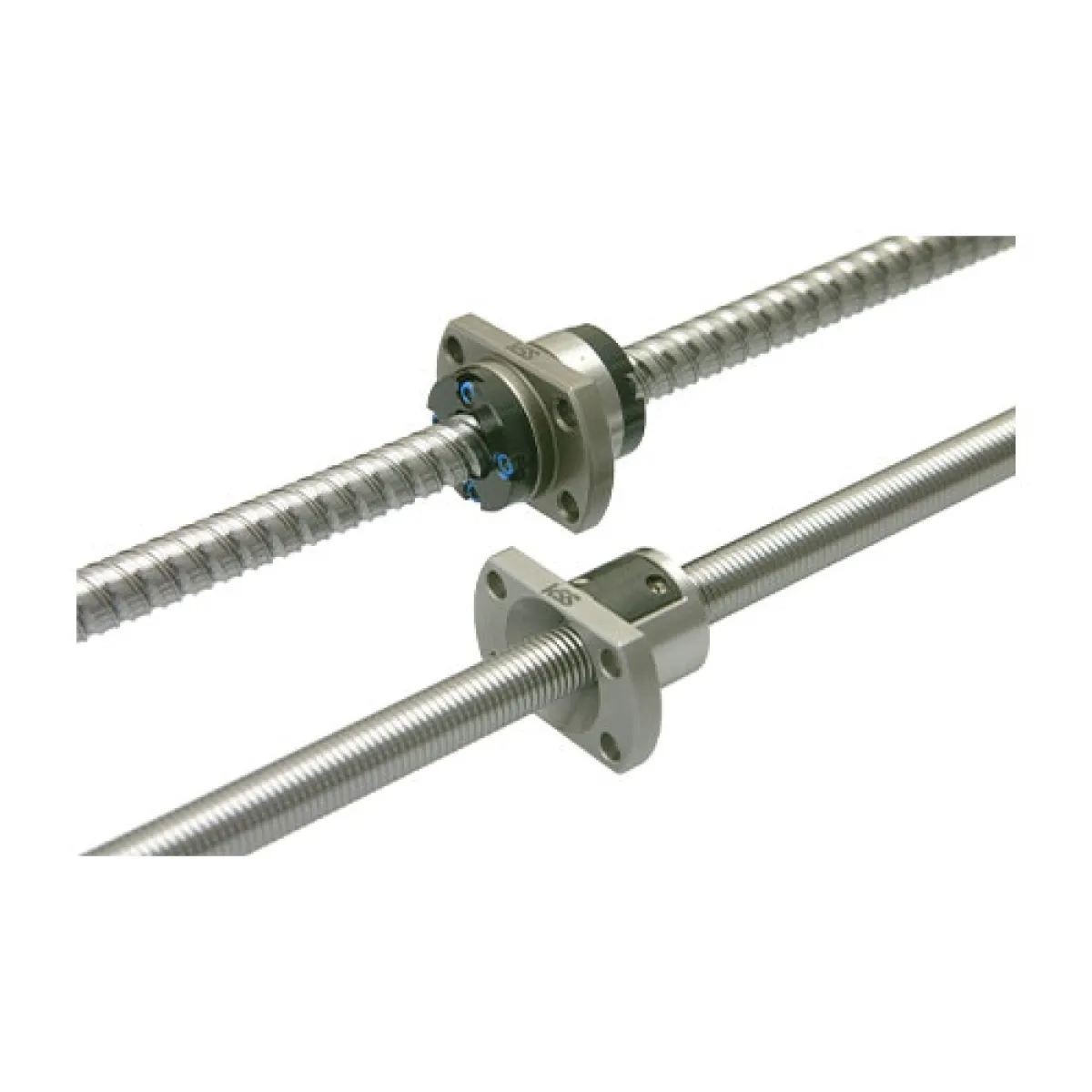

Rolled Ball Screw: SR/SSR Series

Rolled Ball Screw: SR/SSR Series

Diameter size: 4–15 mm
Lead: 1–20 mm
Tolerance class: C7 and C10
Length: up to 1000 mm

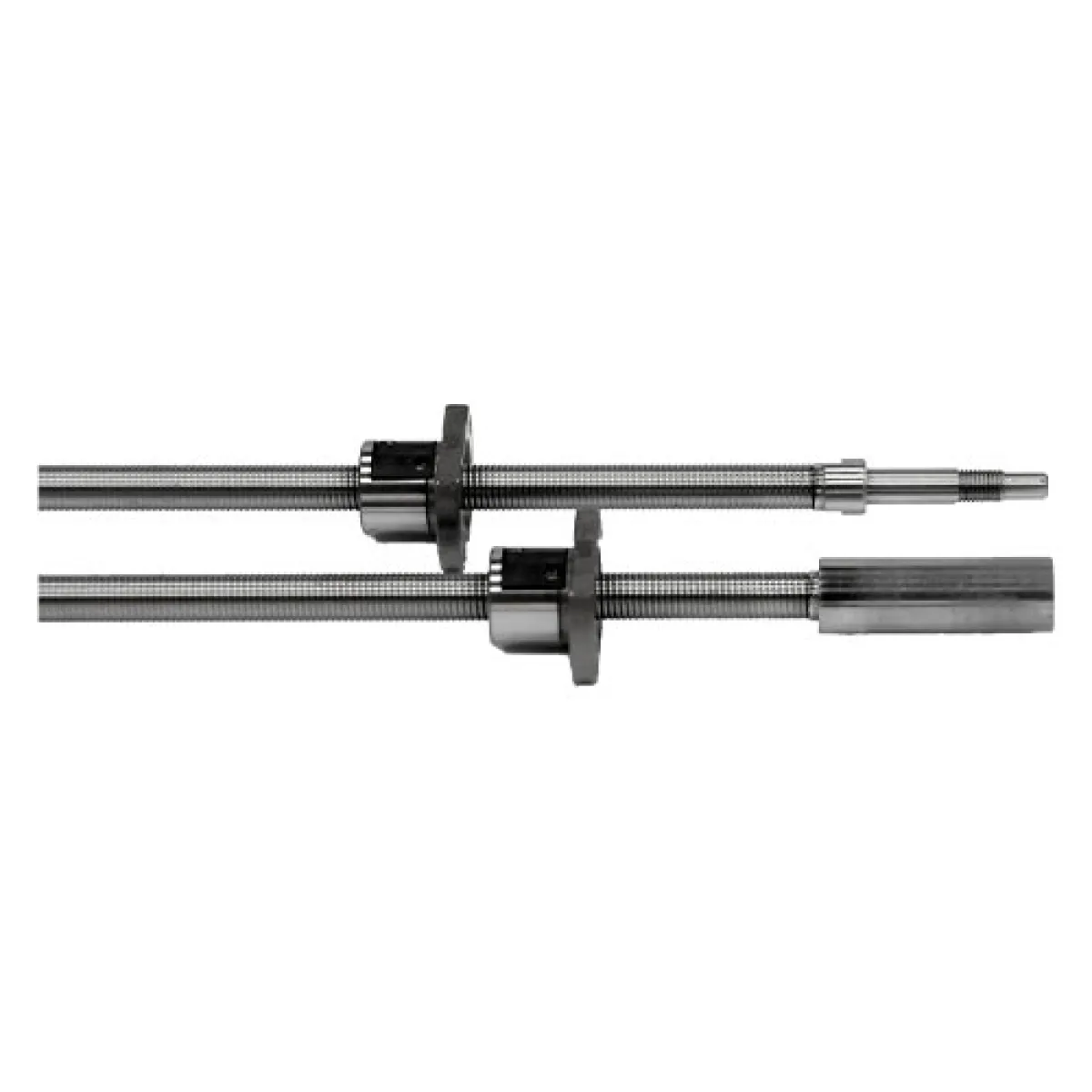

Integrated Rolled Ball Screw: SRT/SSRT Series

Integrated Rolled Ball Screw: SRT/SSRT Series

Diameter size: 4–12 mm
Lead: 1–20 mm
Tolerance class: C7 and C10
Length: up to 470 mm

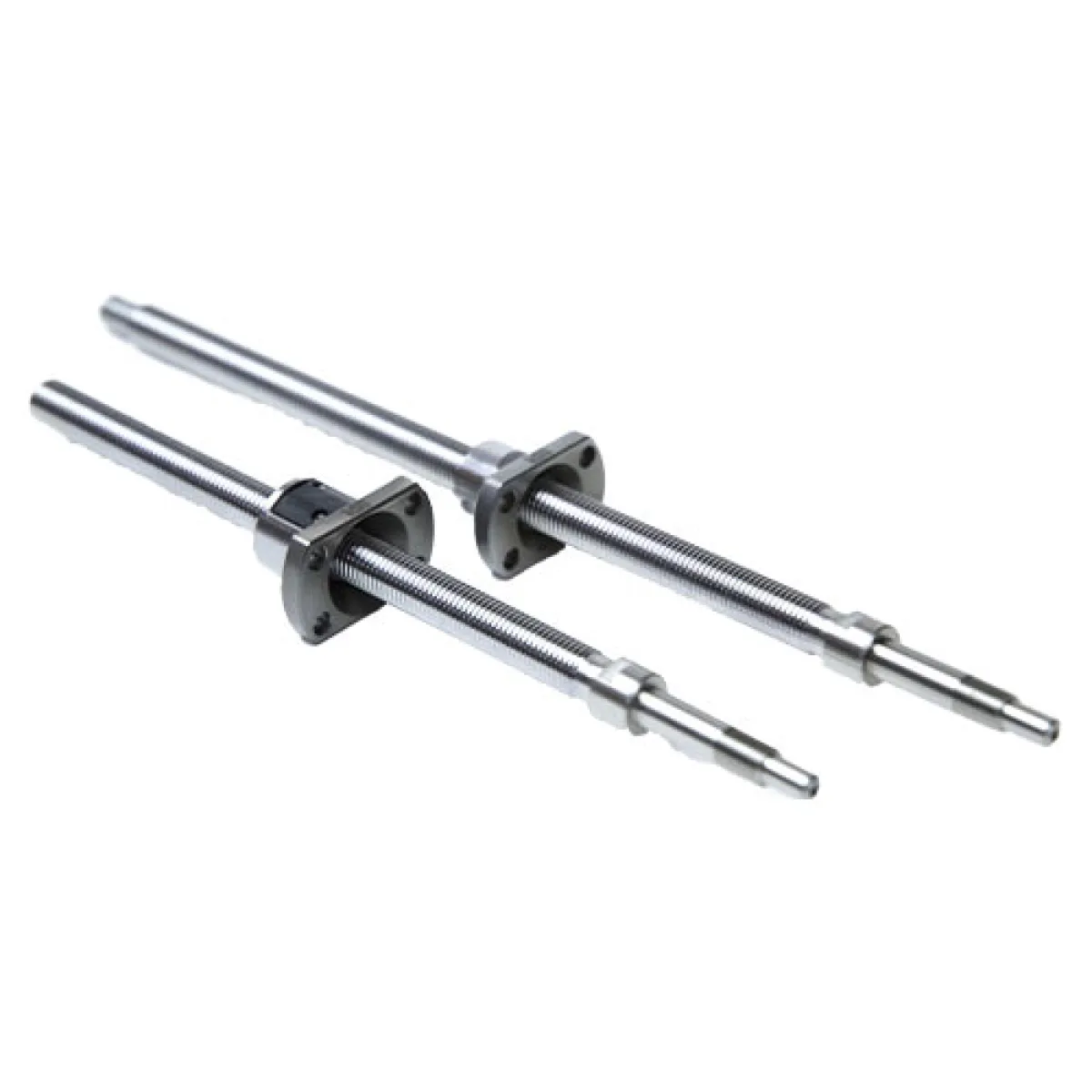

Rolled Precision Ball Screw: PSR/PSRT Series

Rolled Precision Ball Screw: PSR/PSRT Series

Diameter size: 4–12 mm
Lead: 1–12 mm
Tolerance class: C5
Length: up to 330 mm

Product Datasheets
